B7 Stud

10-10000 INR/Piece

Get a Price/Quote

Product Details:

Supply Ability : 10000 Piece Per Day
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 100 Piece
Price 10-10000 INR/Piece

Trade Information

Supply Ability 10000 Piece Per Day
Delivery Time 3 Days

Product Description

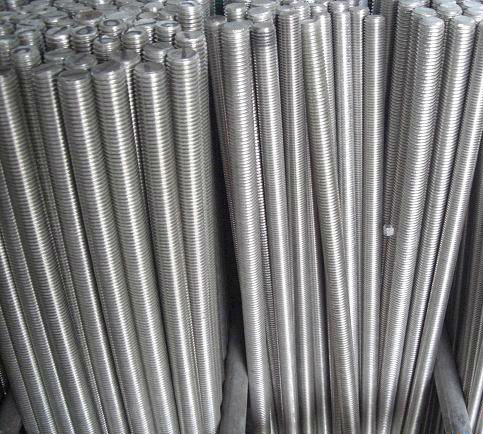

B7 Stud

The company offers B7 stud in different diameters and plain as well as multiple common finishes. The studs are mechanical fasteners with threads on one or either sides. These studs can be zinc plated, yellow zinc plated, mechanical galvanized, hot dip galvanized, cadmium plated, yellow cadmium plated, black oxide or plain surface finished. These are applicable in valves, flanges, fittings as well as high pressure and high temperature applications. The buyers can contact us with their stud length requirement, other than standard lengths offered. The B7 studs are delivered along with plating certification and Material Test Reports.

These alloy steel made studs contain elements like manganese, carbon, molybdenum, chromium, silicon, sulfur and phosphorous in precise amount. Known for their exceptional tensile strength, these accessories are suitable for high temperature and high pressure prone working conditions that are common in chemical and petroleum industries. Notable for their standard length, these have thread on both of their ends. Based on application type, these threading can be extended to their full length. One of their ends has drive slot for trouble free Application of these rods can also be noticed in electrical, plumbing and automotive arena. Solid body, standard density, precise end diameter, rust and wear proof design, standard length and width are the key aspects of these products. These threaded items can be availed at competitive price range.

MATERIALS

EXOTIC ALLOYS	HASTELLOY C22/C276	INCONEL 600/625/718/800/925
	MONEL400/K500	NITRONIC 50/60
	NITRONIC 50/60	660A,B,D
DUPLEX & SUPER DUPLEX	32760(ZERON 100) SA, FG, FLT	31803 (1.4462)
	32750, 31254 (254SMO)	32550 (FERRALIUM)
	DUREHETE 950, 1055, 21CrMoV5.7	X22CrMoV12.1 (1.4923)
	JETHETE X19	X19CrMoVNbN11.1 (1.4913)
	ESSHETE 1250	B16
	NIMONIC 80A/90	1.7729
HEAT RESISTING GRADES	304	347
	310	410
	316	420
	317	431
	321	904L (URANUS B6)
STAINLESS STEELS	17/4PH (630)	FV520B
PRECIPITATION HARDENED STAINLESS STEELS	MILD STEEL	817M40 (EN 24)
	080M40 (EN8)	823M40 (EN 26)
	605M36 (EN 16)	AISI 4140
	709M40 (EN 19)	AISI 4340
CARBON & ALLOY STEELS	HIDURON	PHOSPHOR BRONZE
	MARINEL	MANGANESE BRONZE
	CUPRO NICKEL 70/30 & 90/10	ALUMINIUM BRONZE
	SILICON ALUMINIUM BRONZE	COPPER
NON-FERROUS	ALUMINIUM	C63000

BOLTING GRADES

ASTM 193	B5, B6,B7, B7M	B16
		B8M CLASS 1 & 2
		B8 CLASS 1 & 2
		B8C, B8T
ASTM 320	L7, L7A, L7B, L7C, L43	B8M CLASS 1 & 2
	B8 CLASS 1 & 2	B8F, B8T
ASTM 325	TYPE-1, 2, 3
ASTM 490	TYPE-1, 2, 3
ASTM 307	GR-A, B
ISO:898 / IS-1367	GR-4.6, 5.6, 8.8, 10.9, 12. 9

NUT GRADES

ASTM 194	GRADE	7
	1	7M
	2	8
	2H	8M
	2HM
	4
ASTM 563	GRADE 0, A, B, C, C3, D, DH, DH3
ISO:898 / IS-1367	GRADE 4, 5, 6, 8, 10, 12

THREAD FORMS All fasteners can be supplied with the following thread forms:

METRIC	METRIC FINE	METRIC COURSE
METRIC	UNC	UNF
UN	UNF	UN8
WHIT WORTH	BSW	BSF

ANCILLARY PROCESSES

HEAT TREATMENT	QUENCHING AND TEMPERING	THRU HARDENING
	NORMALISING	SOLUTION ANNEALLING
	NITRIDING	PRECIPITATION HARDENING
	CASE HARDENING
COATINGS	ZINC	XYLAR / XYLAN
	ZINC NICKEL	MOLYKOTE
	HOT DIP GALV	SHERARDIZING
	PTFE / XYLAN	CADMIUM
	PHOSPHATE
